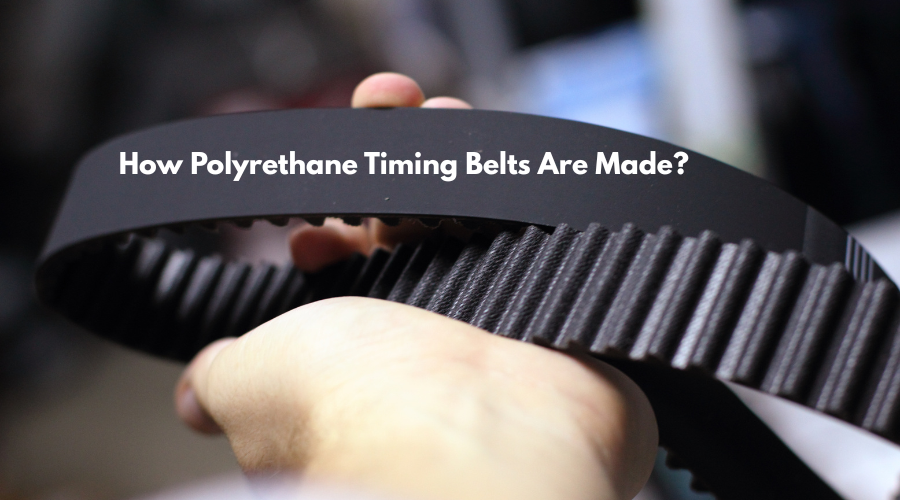

What holds a machine together when precision is not optional, but mandatory? The answer often hides in a seemingly simple component: the polyurethane timing belt. This belt, toothed like the backbone of mechanical order, is more than a flexible loop of material. It is engineered from robust polyurethane belts combined with high-strength tension members, designed to grip, synchronize, and move with unrelenting accuracy.
Polyurethane endows these belts with a set of remarkable qualities. Its surface does not get affected by abrasion. It resists harsh chemicals that would cripple lesser materials. It refuses to stretch beyond control, holding its shape, its pitch, its timing, with unwavering discipline. Compare it with rubber belts, and the differences speak loudly. Rubber deforms, absorbs contaminants, and buckles under harsh environments. Polyurethane has no such weaknesses and is suitable for food factories, or chemical plants anywhere exactness and hygiene matter.
How are these belts made, though? Two primary techniques define the industry. Endless casting is the meticulous process that births seamless belts of uniform strength. And extrusion, the versatile method that churns out long, open-ended belts ready for customization. Both paths converge on a single promise: reliability. But their routes could not be more different.
Casting is not just manufacturing, it is more towards a chemical process or a hybrid of manufacturing and chemistry. From liquid resin and tensile cords emerges a belt that has no seam, or a weak point. It is the method of choice when failure is unthinkable. Let us take a detailed look at what casting manufacturing entails
The process begins with the preparation of raw materials. Polyurethane, chosen in its highest grade, flows in liquid form, ready to be transformed. Reinforcement cords, often made of steel for unyielding strength or aramid fibers for lightweight resilience, are selected to match the application’s demands. The cords themselves become the skeleton of the belt.
Next comes winding and molding. This involves a drum, precise and perfectly round, around which the cords are wound with mathematical regularity. Even spacing, consistent tension and every other dimension is kept precise, and nothing is left to chance. Into this framework, the liquid polyurethane is poured. But not before it undergoes degassing, a careful extraction of air bubbles, because a single trapped pocket could weaken the final product.
Then the magic of curing: vulcanization, takes over. The mold enters a vulcanizer. Here it is subjected to intense temperatures, reaching between 180 and 200 degrees Celsius. Once exposed to pressure, the resin solidifies and forms a dense and stable lattice through cross-linking of the chemical structure. Time is critical here; too short, and the material lacks strength. Too long, and flexibility is lost. Precision here sets the tone for the belt’s lifetime.
When curing ends, controlled cooling begins. Water systems draw down the heat in careful increments, preventing stress fractures or warping. Once cooled, the belt is released from its mold, a seamless ring of strength.
But it is not finished yet. Trimming removes excess material, and inspection follows. Manual and automated inspections, conducted through the use of eyes and instruments, scan for imperfections. The wide sleeve is then sliced with precise blades into narrower belts, tailored for their ultimate role. The result? A truly endless timing belt, uniform in every molecule, ready to power high-load applications without suffering any physical stress.
Extrusion is a distinct manufacturing approach that combines adaptability and efficiency. If casting is like making a sculpture, extrusion is architecture: linear, continuous, versatile.
The manufacturing journey begins with solid polyurethane pellets. They are not liquid but must be melted into submission. Additives may be incorporated, such as anti-static agents, pigments, or modifiers that fine-tune chemical resistance. Once prepared, the resin enters the extruder, where heat transforms it into a molten stream.
Now comes shaping. The molten polymer is pushed through a die, an engineered mold that stamps the belt’s tooth profile. The belt emerges as a continuous strip, endless in length yet open-ended, ready to be cut or spliced as needed.
However, strength does not come solely from polyurethane. As the stream flows, tension cords, made of steel or aramid, are integrated and embedded within the molten body, much like tendons in flesh. These tension cords may be invisible, but they enhance the structural strength of the PU belts by preventing the belt from stretching under tension.
Cooling follows, a steady transformation from fluid to solid. The belt emerges from the die, still hot, and meets the cooling system that locks its shape into permanence. At this point, it is an open-ended strip, flexible in both form and use.
What if an application demands a loop rather than a strip? Welding provides the answer. The ends are cut into a finger joint, a series of precise interlocking cuts. Heat fuses them together, pressure seals the bond, and suddenly the strip becomes an endless belt.
Extrusion, therefore, is not about perfection of form but about freedom. Long rolls of material can be produced at speed, customized later, altered for conveying systems, linear actuators, or automation lines. It is the process of choice when volume and adaptability outrank absolute seamlessness.
Neither method ends with a bare belt. Machines rarely demand simplicity; they demand adaptation. And here, customization takes over.
Customization of the belt can involve changing several features. A belt may require backings to enhance grip, such as Linatex for wear resistance, PVC for food handling, or foams for cushioning. Coatings may be applied to teeth to silence noise or reduce friction. In other cases, cleats and V-guides are welded onto the belt’s surface, enabling it to move products uphill, align precisely on pulleys, or lock into place in positioning systems.
Some belts require even stranger adjustments. Teeth may be removed for sensor integration or specialized contact points. Widths may be sliced down to millimeters, lengths cut to exact tolerances. Every adjustment bends the standard product toward a specific industrial reality.
In both casting and extrusion, customization is not an afterthought but an extension of the manufacturing logic. It is where a standard belt becomes a belt that can be integrated to a specific manufacturing setup.
Quality Control and Final Inspection
Can one trust a belt without proof? Hardly. Quality control procedures close the entire manufacturing process, verifying that the promise of durability is not just on paper. It is done regardless of whether the casting or extrusion method was followed.
Dimensional checks confirm the belt’s width, pitch, and length. Even a fraction of error can have major consequences during operation, throwing the entire motion system off balance and resulting in derailment. Tensile strength testing stretches the belt to its limits, ensuring it can withstand the forces it will face in operation. Visual inspection catches surface defects, irregular tooth profiles, or poor adhesion on coatings.
Finally, the belts are carefully packaged, cushioned against deformation, and shipped out. Every step reflects an understanding that a belt is only as good as the trust of the manufacturer in its quality and performance during operation.
So which method stands supreme? Neither. The choice is never about absolute superiority but about fit. Casting delivers belts of seamless integrity, engineered for heavy loads and synchronous precision. It is the right answer when power transmission cannot tolerate weakness. Extrusion, on the other hand, delivers production volume, adaptability, and lower cost, while still offering the ability to weld belts into endless loops. It thrives in conveying systems, automation setups, and custom mechanical tasks.
The final decision rests with the application. What does the system demand: seamless strength, or design freedom? High-load endurance, or low-cost versatility? Polyurethane timing belts, whether produced through casting or extrusion, deliver the same outcome to industries: reliability in motion. And that reliability, invisible as it may seem on the factory floor, is what keeps machines moving, products flowing, and power synchronized.
