| Features : |
-- Excellent dynamic curve performance
-- Crack resistant
-- Ozone resistant
-- Anti-aging
-- Heat resistant
-- Wear resistant
-- Oil proof
Features :
| General technical data : |
| PU / rubber timing belt | |
| Product name | timing belt |
| Model number | T5,T10,T20,AT5,AT20, HTD 3M, HTD 5M, HTD8M, HTD14M,XL,L,H,XH |
| Material | Polyurethane / Rubber |
| Teeth method | single sided teeth and double sided teeth |
| Demision (mm ) | can be customized |
| Joint | open end, circle , jointed circle |
| Surface | pure color covered with other color shield ,Kevlar cord |
| Core reinforeced (option) | Fiberglass cord or steel cord |
| Processing | add rubber/punch/slot/pattern/guide bar |
| working temperature | -25~110°c |
| Features | High strength ,easy to be melted joint |
| Scope of use | driving , transmission |
Model type specification details |

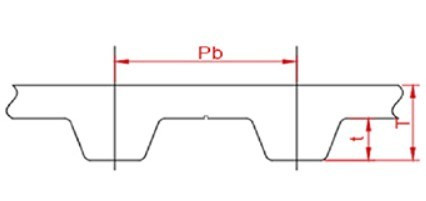

| Drawing | Model number | Pb pitch (mm) | t Teeth height (mm) | T Belt thickness(mm) |
 | L | 9.525 | 1.91 | 3.6 |
| XL | 5.08 | 1.27 | 2.30 | |
| H | 12.7 | 2.29 | 4.3 | |
| XH | 2.225 | 6.35 | 11.20 |
2. PU timing belt
| Drawing | Model number | Pb pitch (mm) | t Teeth height (mm) | T Belt thickness(mm) |
 | T5 | 5 | 1.2 | 2.2 |
| T10 | 10 | 2.5 | 4.5 | |
| T20 | 20 | 5 | 8 | |
| AT5 | 5 | 1.2 | 2.7 | |
| AT10 | 10 | 2.5 | 4.5 | |
| AT20 | 20 | 5 | 8 |
| Drawing | Teeth Code | Model number | Pb pitch (mm) | t Teeth height (mm) | T Belt thickness(mm) |
 | HTD | 3M | 3 | 1.22 | 2.4 |
| 5M | 5 | 2.06 | 3.8 | ||
| 8M | 8 | 3.38 | 6 | ||
| 14M | 14 | 6.02 | 10 | ||
 | STD | S5M | 5 | 1.91 | 3.6 |
| S8M | 8 | 3.05 | 5.30 | ||
| S14M | 14 | 5.30 | 10.20 |
